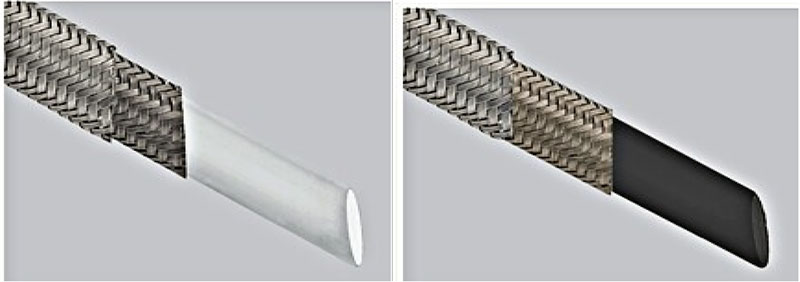

ABCOFLEX smooth bore is a quality engineered plain PTFE tube reinstated with double AISI 304 high
tensile stainless steel braid. They are designed specifically for industrial use where reliability and long life
are required and where hostile temperatures or corrosive conditions make PTFE the ideal choice. Abcoflex
is available with translucent virgin PTFE or anti-static black.
Construction:
Produced with PTFE resins approved by FDA, DVGW and BFR that allow our hoses to be used with foods
and drinks
Characteristics:
- Extreme Flexibility
- High Pressure
- High Resistance to the Aging
- Low Maintenance
- Chemical Inertness
Temperature:
-70 to +260°C depending on the working pressure.
Fittings:
Male, Female, Flanged, Triclover and PTFE Flared / Encapsulated fittings available in all the materia.
| Code |
ID |
OD |
Working Pressure |
BURST Pressure |
Minimum Bend Radius |
|
MM |
MM |
BAR |
BAR |
MM |
| DKT05 |
5 |
8.8 |
315 |
1100 |
50 |
| DKT06 |
6.5 |
10.4 |
290 |
1000 |
70 |
| DKT08 |
8 |
12 |
260 |
900 |
90 |
| DKT10 |
9.5 |
13.7 |
240 |
840 |
100 |
| DKT12 |
12.7 |
17 |
250 |
750 |
110 |
| DKT16 |
16 |
20.5 |
190 |
645 |
150 |
| DKT20 |
19 |
23.5 |
160 |
575 |
200 |
| DKT25 |
25 |
30.8 |
110 |
400 |
300 |
