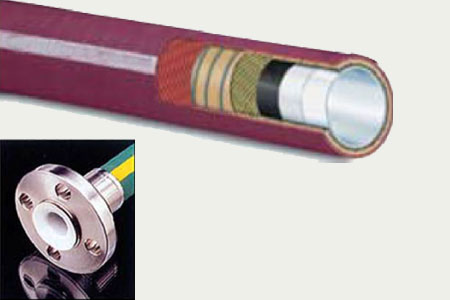

Rubber-covered-PTFE-PFA-Hose

Rubber covered fluoropolymer hoses are designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry. It complies with FDA 21 CFR 177.1550, 177.2600 standards, USP XXIII class VI requirements and European Pharmacopoeia 3.1.9, ISO 10993 Sec 5, 6, 10, 11.

Tube:
Inner tube of PFA or PTFE

Reinforcement:
Multi-layered rubber, polyester cord, antistatic copper wire and a double helix wire for support.

Cover:
Smooth EPDM rubber

Sterilisation:
According to 3A Sanitary Standard Class II

Rubber Covered PTFE/PFA Hose
Code ID OD Working Pressure BURST Pressure Minimum Bend Radius
MM MM BAR BAR MM
PF012 13 25 16 64 100
PF020 20 31 16 64 130
PF025 25 37 16 64 180
PF032 32 44 16 64 220
PF038 38 51 16 64 260
PF050 50 66 16 64 330
PF063 63 79 16 64 440
PF076 76 92 16 64 520
